Hinges
Standard Wood Door Hinge Series 4" x 4"

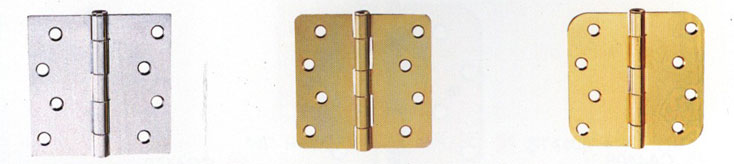

* Standard Types
|
Square Corner WD4400 |
1/4" Radius Corner WD4422 |
5/8" Radius Corner WD4455 |

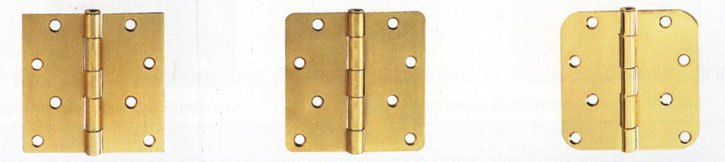

* Canada Hole Types
|
Square Corner WC4400 |
1/4" Radius Corner WC4422 |
5/8" Radius Corner WC4455 |
|
Descriptions
|
P/N
|
Thickness of Metal
|
Radius of Corner
|
Size of screws
|
||
|
inch.
|
mm
|
two-knuckle leaf
|
three-knuckle leaf
|
|||
|
Standard Type
|
WD4400
|
0.087
|
2.2
|
square
|
square
|
#9
|
|
WD4422
|
0.087
|
2.2
|
1/4"
|
1/4"
|
#9
|
|
|
WD4455
|
0.087
|
2.2
|
5/8"
|
5/8"
|
#9
|
|
|
Canada Type
|
WC4400
|
0.087
|
2.2
|
square
|
square
|
#8
|
|
WC4422
|
0.087
|
2.2
|
1/4"
|
1/4"
|
#8
|
|
|
WC4455
|
0.087
|
2.2
|
5/8"
|
5/8"
|
#8
|
|
