Diamond Saw Blade

Brazed Diamond Blades
SS
　　Our best brazed professional
　　blades for concrete, masonry,
　　and granite-Supreme quality
　　manufactured with G.E.Diamonds
　　for long life-Available from 10"
　　through 72".
ITEM NO. SPECIFICATIONS
  D×W×T N

　　　　　　　H


　NORMAL:
　20mm
　7/8"
　1"
　5/8"
　DM7/8" -5/8"　　　　　　　　



　Special:
　To order
SS250 250(10")×8×2.7 17
SS300 300(12")×8×2.8/3 21
SS350 350(14")×8×3.2 24
SS400 400(16")×8×3.8 28
SS450 450(18")×8×3.8 32
SS500 500(20")×8×4 36
SS600 600(24")×8×4 42
SS700 700(28")×8×5 42/45
SS800 800(32")×8×6 46
SS900 900(36")×8×6 60
SS1000 1000(40")×8×6 70
SS1200 1200(48")×11×6 80
SS1400 1400(55")×11×6 108
SS1600 1600(64")×11×9 108
SS1800 1800(72")×12×9.6 120

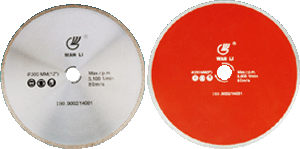

Continuous Rim Diamond Blades

CCR
ITEM NO. SPECIFICATION
D×W×T H
CCR80 80(3 1/8")×5×1.5/1.7 　Normal:
　20mm

　7/8"
　1"
　5/8"
　DM7/8" -5/8"

　Special:
　To order
CCR89 89(3 1/2")×5×1.5/1.7
CCR100 100(4")×5×1.7/2.0
CCR105 105(4")×5×1.7/2.0
CCR110 110(4 3/8")×5×1.7/2.0
CCR115 115(4.5")×5×1.7/2.0
CCR125 125(5")×5×1.7/2.0
CCR150 150(6")×5×1.9/2.2
CCR180 180(7")×5×2.2/2.4
CCR200 200(8")×5×2.2/2.5
CCR230 230(9")×5×2.4/2.5
CCR250 250(10")×5×2.5/2.7
CCR300 300(12")×6×3.0/3.2
CCR350 350(14")×7×3.0/3.2
　　　　　　　　　　　　　　　　　　　　　Unit:mm
Wet/dry cutting for tile and marble-Best combination of Fast cutting, Long life and Smooth chip free performance. For extremely long life, we offer 5.0mm and 7.0mm high diamond rim.

Laser Welded Diamond Blades

LS
　　Laser Welded Professional Blades
　　with "Key"slots(LS)-Manufactured
　　with G.E. diamonds　and special
　　matrix bonds for long life and fast
　　cutting speed of concrete, masonry
　　granite, marble and asphalt-
　　Different matrix bonds　can be
　　formulated for exactly special
　　applications
　　　D:Diameter of Tools
　　　W:Width of Segments
　　　T:Thickness of Segments
　　　N:Number of Segments
　　　H:Arbor Hole
ITEM NO. SPECIFICATIONS
D×W×T N H
LS105 105(4")×7×2.2 8

　Normal:
　20mm
　7/8"
　1"
　5/8"
　DM7/8"-5/8"



　Special:
　To order
LS110 110(4 3/8")×7×2.2 9
LS115 115(4.5")×7×2.2 8
LS125 125(5")×7×2.2 9
LS150 150(6")×7×2.2 12
LS180 180(7")×7×2.5 14
LS200 200(8")×7×2.7 14
LS230 230(9")×7×2.7 16
LS250 250(10")×7×2.7 17
LS300 300(12")×8×3.0 21
LS350 350(14")×8×3.2/3.0 24
LS400 400(16")×8×3.8/3.6 28
LS450 450(18")×8×3.8/3.6 32
LS500 500(20")×8×3.8/3.6 36
LS600 600(24")×8×4.0 42
　　　　　　　　　　　　　　　　　　　Unit:mm
　　LASER WELDED BLADES
　　　　　　　LSB 　　　　　　　　　　　　LSX
Faster cutting-long life laser welded blades especially designed for abrasive asphalt with U slot and turbo segments-Also effective for other abrasive applications such as green concrete, medium to soft sandstone, and refractory materials.
LST

ITEM NO. SPECIFICATIONS
D×W×T H
LSB
&
LSX
LST		 230 230(9")×7×2.7 　Normal:
　20mm
　7/8"
　1",2"
　5/8"
　DM7/8" -5/8"
　Special:
　To order
250 250(10")×7×2.7
300 300(12")×8×3.0
350 350(14")×8×3.2
400 400(16")×8×3.8
450 450(18")×8×3.8
500 500(20")×8×3.8
600 600(24")×7×8×4.0
　　　　　　　　　　　　　　　　　　　　　　　　　Unit:mm
These two types of Laser Welded Turbo Blades-Designed for fast and smooth cutting with better removal of debris-Suitable for a wide range of applications such as masonry, concrete, granite and bricks.
