Hinges
Special Residential Hinge Series 4" x 4"
* GE Hole Patterns
|

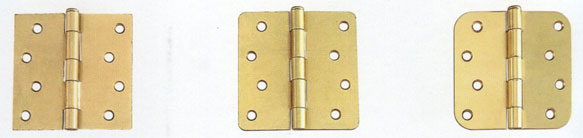

Square Corner GE4400 |
1/4" Radius Corner GE4422 |
5/8" Radius Corner GE4455 |
|

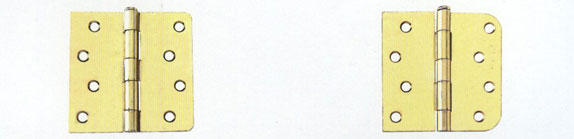

Square Corner / 1/4" radius corner GE4402 |
Square Corner / 5/8" radius corner GE4405 |
|
Descriptions
|
P/N
|
Thickness of Metal
|
Radius of Corner
|
Size of screws
|
||
|
inch.
|
mm
|
two-knuckle leaf
|
three-knuckle leaf
|
|||
|
General Products Hole Pattern
|
GE4400 |
0.097
|
2.5
|
Square
|
Square
|
#10
|
|
|
GE4422
|
0.097
|
2.5
|
1/4"
|
1/4"
|
#10
|
|
|
GE4455
|
0.097
|
2.5
|
5/8"
|
5/8"
|
#10
|
|
|
GE4402
|
0.097
|
2.5
|
Square
|
1/4"
|
#10
|
|
|
GE4405
|
0.097
|
2.5
|
Square
|
5/8"
|
#10
|
