Hinges
Special Residential Hinge Series 4" x 4"
* PC Hole Patterns
|

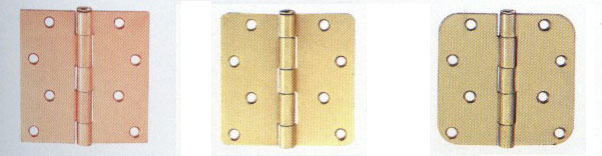

Square Corner PC4400 |
1/4" Radius Corner PC4422 |
5/8" Radius Corner PC4455 |
|

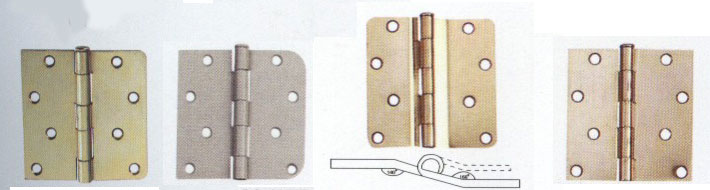

Square Corner 1/4" radius corner PC4402 |
Square Corner 5/8" radius corner PC4405 |
Square Corner 4"x3-7/8" 1/4" radius corner PC4700 PC4722 |
Square Corner 4"x3-3/4" 4"x3-7/8" PD4600 |
|
Descriptions
|
P/N
|
Thickness of Metal
|
Radius of Corner
|
Size of screws
|
||
|
inch.
|
mm
|
two-knuckle leaf
|
three-knuckle leaf
|
|||
|
Peachtree Door Hole Pattern
|
PC4400 |
0.097
|
2.5
|
Square
|
Square
|
#9
|
|
|
PC4422
|
0.097
|
2.5
|
1/4"
|
1/4"
|
#8
|
|
|
PC4455
|
0.097
|
2.5
|
5/8"
|
5/8"
|
#9
|
|
|
PC4402
|
0.097
|
2.5
|
Square
|
1/4"
|
#9
|
|
|
PC4405
|
0.097
|
2.5
|
Square
|
5/8"
|
#9
|
|
PC4722
|
0.087
|
2.2
|
1/4"
|
1/4"
|
#10
|
|
|
PC4700
|
0.087
|
2.2
|
square
|
square
|
#10
|
|
|
PD4600
|
0.087
|
2.2
|
square
|
square
|
#10
|
|
