Hinges
Special Residential Hinge Series
|

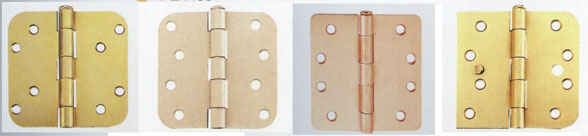

Square Corner / 1/4" radius corner 4" x 4" TT4402 |
Square corner / 5/8" radius corner 4" x 4" TT4405 |
Square Corner / 5/8" radius corner 3" x 3-3/16" PR3105 |
Square corner / 5/8" radius corner 3-1/2" x 3-3/4" SA3605 |
|

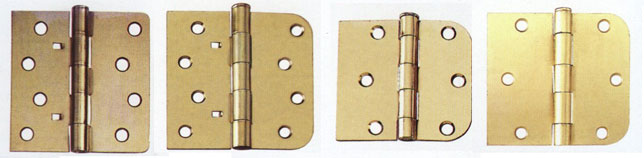

5/8" Radius Corner 4"x4.08" PE4455 |
5/8" Radius Corner 4"x4" TA4455 |
1/4" Radius Corner 4" x 4" TE4422 |
Square corner / 5/8" radius corner 4" x 4" IT4405 |
|
Descriptions
|
P/N
|
Thickness of Metal
|
Radius of Corner
|
Size of screws
|
||
|
inch.
|
mm
|
two-knuckle leaf
|
three-knuckle leaf
|
|||
|
Therma-tru Hole Pattern
|
TT4402 |
0.097
|
2.5
|
Square
|
1/4"
|
#10
|
|
|
TT4405
|
0.097
|
2.5
|
Square
|
5/8"
|
#10
|
|
Premdor Hole Pattern
|
PR3105
|
0.087
|
2.2
|
Square
|
5/8"
|
#8
|
|
Sailor Hole Pattern
|
SA3605
|
0.087
|
2.2
|
Square
|
5/8"
|
#9
|
|
Pease Hole Pattern
|
PE4455
|
0.097
|
2.5
|
5/8"
|
5/8"
|
#8
|
|
Taylor Hole Pattern
|
TA4455
|
0.097
|
2.5
|
5/8"
|
5/8"
|
#10
|
|
Template Hole Pattern
|
TE4422
|
0.097
|
2.5
|
1/4"
|
1/4"
|
#12
|
|
Integrity Hole Pattern
|
IT4405
|
0.097
|
2.5
|
Square
|
5/8"
|
#10
|
