Hose Reel

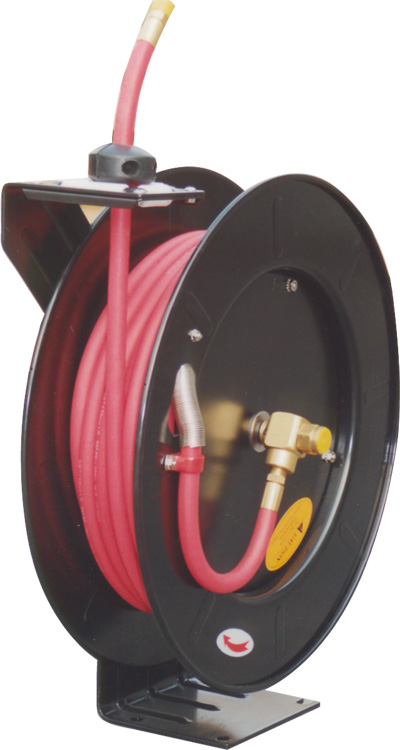

Spring Rewind Hose Reels

808 Series


Heavy-duty steel construction for industrial and automotive applications
Epoxy powder-coated reel is corrosion resistant
7" wide L-shaped base with groove reinforcement ensures stable support
Guide arm adjustable for handling up to 9 positions
Four-direction non-snag rollers reduce hose wear
Multi-position ratchet lock and easy tension adjustment
Full flow swivel is leakage-proof
Spring fully enclosed and lubricated
Wall, ceiling, or floor mounted


Low Pressure Air / Water Reels
Item Inlet/Outlet (inch) Max Pressure (psi/bar) Hose Capacity/I.d.(inch) Hose Capacity/Length (ft/m) Packing Dimensions (cm) NW/GW (kgs) Loading Q'ty of 20'CY
L808103 3/8" 300/20 3/8" 33'/10 52*23.5*56.5 20/22 400
L808153 3/8" 300/20 3/8" 50'/15 52*23.5*56.5 22/24 400
L808203 3/8" 300/20 3/8" 65'/20 52*23.5*56.5 24/26 400
L808104 1/2" 300/20 1/2" 33'/10 52*23.5*56.5 24/26 400
L808154 1/2" 300/20 1/2" 50'/15 52*23.5*56.5 27/29 400
L808204 1/2" 300/20 1/2" 65'/20 52*23.5*56.5 29/31 400
Low pressure reels furnished standard with rubber hose. Maximum temperature 210oF(100℃)
Medium Pressure Water / Oil Reels
Item Inlet/Outlet (inch) Max Pressure (psi/bar) Hose Capacity/I.d.(inch) Hose Capacity/Length (ft/m) Packing Dimensions (cm) NW/GW (kgs) Loading Q'ty of 20'CY
M808103 3/8" 2250/155 3/8" 33'/10 52*23.5*56.5 22/24 420
M808153 3/8" 2250/155 3/8" 50'/15 52*23.5*56.5 24/26 420
M808203 3/8" 2250/155 3/8" 65'/15 52*23.5*56.5 26/28 420
M808104 1/2" 2000/138 1/2" 33'/10 52*23.5*56.5 23/25 420
M808154 1/2" 2000/138 1/2" 50'/15 52*23.5*56.5 26/28 420
M808204 1/2" 2000/138 1/2" 65'/15 52*23.5*56.5 28/30 420
Medium pressure reels furnished standard with S.A.E.100R1 AT one wire braid hose. Maximum temperature 210oF(100℃)
High Pressure Grease / Hydraulic Oil Reels
Item Inlet/Outlet (inch) Max Pressure (psi/bar) Hose Capacity/I.d.(inch) Hose Capacity/Length (ft/m) Packing Dimensions (cm) NW/GW (kgs) Loading Q'ty of 20'CY
H80823 3/8" 4000/276 3/8" 65'/20 52*23.5*56.5 30/32 400
H808152 1/4" 5000/345 1/4" 50'/15 52*23.5*56.5 24/26 420
H808202 1/4" 5000/345 1/4" 65'/20 52*23.5*56.5 26/28 420
H808103 3/8" 4000/276 3/8" 33'/10 52*23.5*56.5 24/26 420
H808153 3/8" 4000/276 3/8" 50'/15 52*23.5*56.5 27/29 420
H80823 3/8" 4000/276 3/8" 65'/20 52*23.5*56.5 30/32 400
High pressure reels furnished standard with S.A.E.100R2 AT two wire braid hose. Maximum temperature 210oF(100℃)
