Hose Reel

Spring Rewind Hose Reels

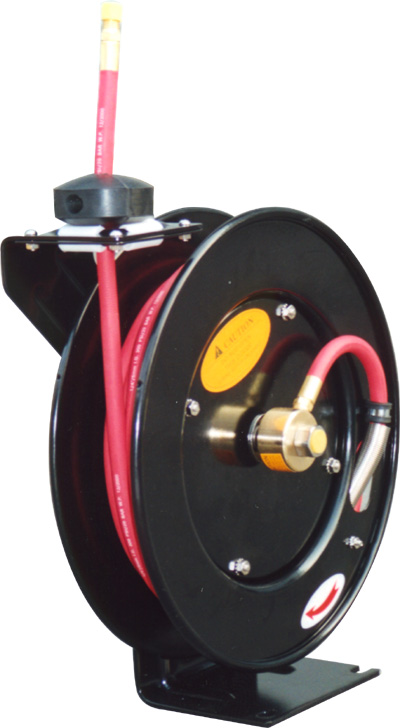

809 Series


Designed to increase safety and efficiency at work shops or assembly lines
Heavy-duty steel construction with corrosion resistant powder coating
6-1/2 wide L-shaped base with groove reinforcement ensures stable support
Guide arm adjustable for handling up to 9 positions
Four-direction non-snag rollers reduce hose wear
Multi-position ratchet lock and easy tension adjustment
Full flow swivel is leakage-proof
Spring fully enclosed and lubricated
Wall, ceiling, or floor mounted


Low Pressure Air / Water Reels
Item Inlet/Outlet (inch) Max Pressure (psi/bar) Hose Capacity/I.d.(inch) Hose Capacity/Length (ft/m) Packing Dimensions (cm) NW/GW (kgs) Loading Q'ty of 20'CY
L809082 1/4" 300/20 1/4" 25'/8 39*18*43 12.5/14 900
L809102 1/4" 300/20 1/4" 33'/10 39*18*43 13/14.5 900
L809083 3/8" 300/20 3/8" 25'/8 39*18*43 13/14.5 900
L809103 3/8" 300/20 3/8" 33'/10 39*18*43 13.5/15 900
Low pressure reels furnished standard with rubber hose. Maximum temperature 210oF(100℃)
Medium Pressure Water / Oil Reels
Item Inlet/Outlet (inch) Max Pressure (psi/bar) Hose Capacity/I.d.(inch) Hose Capacity/Length (ft/m) Packing Dimensions (cm) NW/GW (kgs) Loading Q'ty of 20'CY
M809082 1/4" 2750/190 1/4" 25'/8 39*18*43 13.5/15 900
M808083 3/8" 2250/155 3/8" 25'/8 39*18*43 14.5/16 900
Medium pressure reels furnished standard with S.A.E.100R1 AT one wire braid hose. Maximum temperature 210oF(100℃)
High Pressure Grease / Hydraulic Oil Reels
Item Inlet/Outlet (inch) Max Pressure (psi/bar) Hose Capacity/I.d.(inch) Hose Capacity/Length (ft/m) Packing Dimensions (cm) NW/GW (kgs) Loading Q'ty of 20'CY
H809082 1/4" 5000/345 1/4" 25'/8 39*18*43 14.5/16 900
H809083 3/8" 4000/276 3/8" 25'/8 39*18*43 16/17.5 900
High pressure reels furnished standard with S.A.E.100R2 AT two wire braid hose. Maximum temperature 210oF(100℃)
