Hose Reel

Spring Rewind Hose Reels

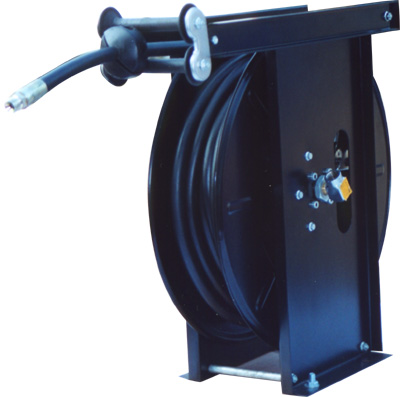

810 Series


Heavy duty steel construction for industrial and automotive applications
Epoxy powder-coated reel is corrosion resistant
Double supported 1-3/8 axle, full flow swivel joint
Multi-position release ratchet, spring fully enclosed and lubricated
Oil-lite self-lubricating bearing
Two direction non-snag rollers reduce hose wear
Wall, or floor mounted


Low Pressure Air / Water Reels
Item Inlet/Outlet (inch) Max Pressure (psi/bar) Hose Capacity/I.d.(inch) Hose Capacity/Length (ft/m) Packing Dimensions (cm) NW/GW (kgs) Loading Q'ty of 20'CY
L810104 1/2" 300/20 1/2" 33'/10 54*24*52 23/25 420
L810154 1/2" 300/20 1/2" 50'/15 54*24*52 25/27 420
L810103 3/8" 300/20 3/8" 33'/10 54*22*52 20/22 420
L810153 3/8" 300/20 3/8" 50'/15 54*22*52 21/23 420
Low pressure reels furnished standard with rubber hose. Maximum temperature 210oF(102℃)
Medium Pressure Water / Oil Reels
Item Inlet/Outlet (inch) Max Pressure (psi/bar) Hose Capacity/I.d.(inch) Hose Capacity/Length (ft/m) Packing Dimensions (cm) NW/GW (kgs) Loading Q'ty of 20'CY
M810103 3/8" 2250/155 3/8" 33'/10 54*24*52 21/23 420
M810153 3/8" 2250/155 3/8" 50'/15 54*24*52 23/25 420
M810104 1/2" 2000/138 1/2" 33'/10 54*24*52 22/24 420
M810154 1/2" 2000/138 1/2" 50'/15 54*24*52 24/26 420
Medium pressure reels furnished standard with S.A.E.100R1 AT one wire braid hose. Maximum temperature 210oF(100℃)
High Pressure Grease / Hydraulic Oil Reels
Item Inlet/Outlet (inch) Max Pressure (psi/bar) Hose Capacity/I.d.(inch) Hose Capacity/Length (ft/m) Packing Dimensions (cm) NW/GW (kgs) Loading Q'ty of 20'CY
H810102 1/4" 5000/345 1/4" 33'/10 54*24*52 21/23 420
H810152 1/4" 5000/345 1/4" 50'/15 54*24*52 23/25 420
H8101043 3/8" 4000/276 3/8" 33'/10 54*24*52 22/24 420
H8101543 3/8" 4000/276 3/8" 50'/15 54*24*52 24/26 420
High pressure reels furnished standard with S.A.E.100R2 AT two wire braid hose. Maximum temperature 210oF(100℃)
